Release v0.0.13

Overview

This release introduces significant enhancements to the vNext Runtime Platform, focusing on platform-specific view rendering, enhanced API endpoints, and comprehensive observability through OpenTelemetry instrumentation.

🚀 New Features

Platform-based View Overrides (#56)

The platform now supports platform-specific view rendering, allowing different UI experiences for Android, iOS, and Web clients.

Key Features:

• Platform-specific content and display types
• Automatic platform detection via query parameters
• Fallback to default view when platform override is not available
• Support for multiple content types (JSON/Dynamic Flutter, HTML/Static)

Supported Platforms:

• android - Material Design components
• ios - Cupertino design components
• web - HTML/CSS based rendering

Display Types:

• full-page - Full page display
• popup - Popup/modal display
• bottom-sheet - Bottom sheet display
• top-sheet - Top sheet display
• drawer - Drawer/side menu display
• inline - Inline display within page

Example View Configuration:

{
  "key": "user-profile-view",
  "version": "1.0.0",
  "domain": "user-mgmt",
  "flow": "sys-views",
  "flowVersion": "1.0.0",
  "tags": ["profile", "user"],
  "attributes": {
    "type": "json/dynamic-flutter-v2/static",
    "content": "{ \"widget\": \"Text\", \"data\": \"Hello\" }",
    "display": "full-page",
    "labels": [
      { "language": "en-US", "label": "Profile" },
      { "language": "tr-TR", "label": "Profil" }
    ],
    "platformOverrides": {
      "android": {
        "content": "{ \"widget\": \"MaterialCard\", \"title\": \"Android Profile\" }",
        "display": "bottom-sheet"
      },
      "ios": {
        "content": "{ \"widget\": \"CupertinoPage\", \"title\": \"iOS Profile\" }"
      },
      "web": {
        "type": "html/static",
        "content": "<div class=\"profile\">Web Profile</div>",
        "display": "inline"
      }
    }
  }
}

🔧 API Enhancements

View Endpoint Enhancement (#55)

Enhanced the view function endpoint to support platform-specific rendering.

Endpoint: GET /:domain/workflows/:flowName/instances/:id/functions/view

Query Parameters:

• platform (required) - Target platform: android, ios, or web

Functionality:

1. Checks if platform override exists in view configuration
2. Returns platform-specific content if available
3. Falls back to default view content if no override exists

Function Data Endpoint Enhancement (#60)

Improved the function data endpoint with filtering and extension support.

Endpoint: GET /:domain/workflows/:flowName/instances/:id/functions/data

Query Parameters:

• filter - Data filtering criteria
• extensions - Additional data extensions to include

Features:

• Advanced data filtering capabilities
• Extensible data retrieval
• Optimized response payload

Long Polling State Endpoint Enhancement (#74)

New state endpoint for real-time workflow state monitoring.

Endpoint: GET /:domain/workflows/:flowName/instances/:id/functions/state

Features:

• Real-time state updates
• Long polling support
• Efficient state change notifications

📊 Observability & Monitoring

OpenTelemetry Instrumentation (#73)

Comprehensive observability implementation with OpenTelemetry for distributed tracing and structured logging.

Instrumented Components:

• Transition Pipeline execution
• Task handlers and processors
• Re-entry mechanisms
• HTTP request/response cycles

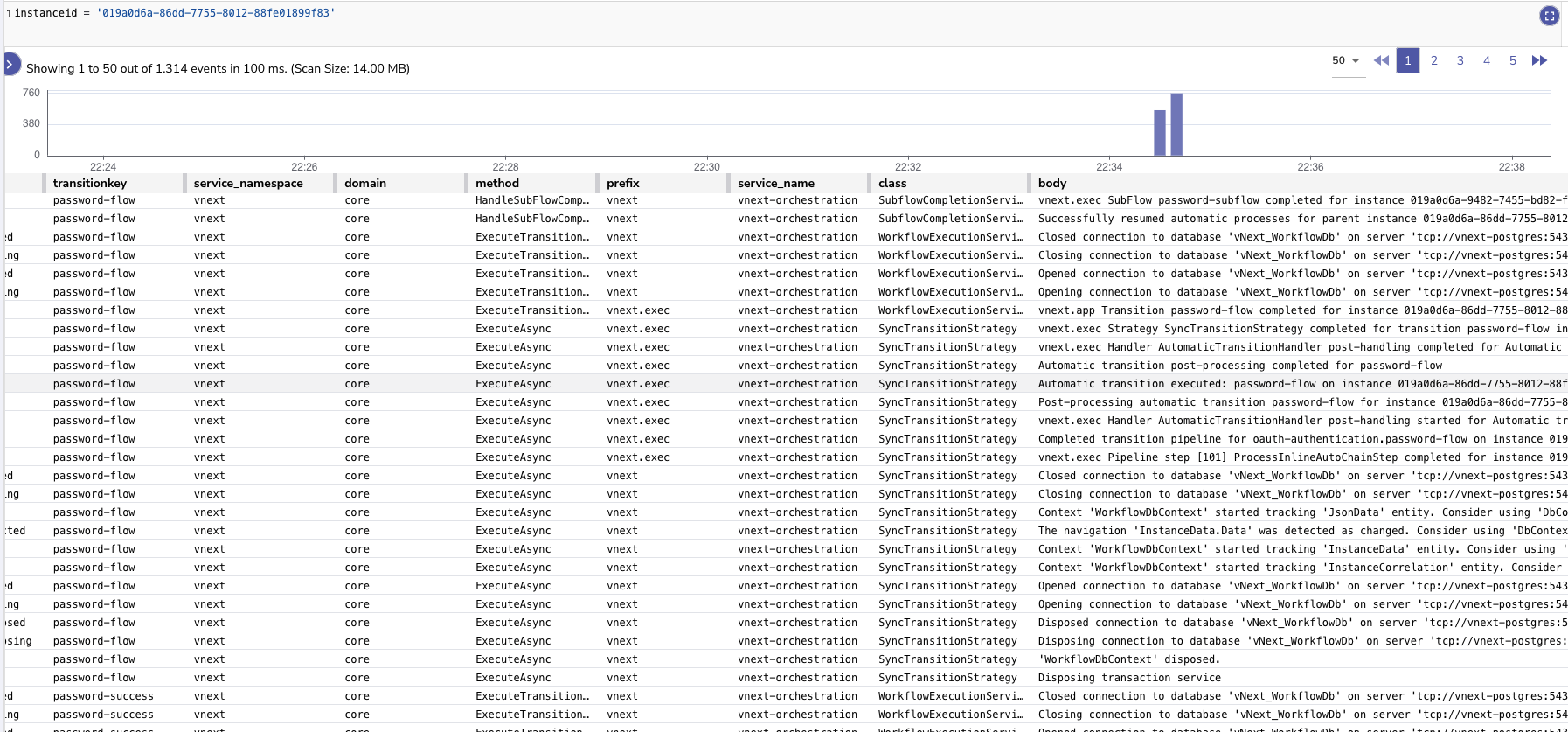

Logging Enhancements

VNextLogEnricherProcessor Features:

• Automatic log enrichment with contextual information
• Structured EventId numbering scheme
• Correlation with OpenTelemetry spans
• HTTP header propagation
• Custom attribute support

Log Schema:

{
  "ts": "2025-10-11T10:30:45.123Z",
  "level": "Information",
  "message": "vnext.exec Transition auto-approve started for instance 8b3e...",
  "event.id": 10001,
  "event.name": "TransitionStarted",
  "category": "BBT.Workflow.Execution.Pipeline.TransitionPipeline",
  "prefix": "vnext.exec",
  "class": "TransitionPipeline",
  "method": "RunAsync",
  "domain": "amorphie",
  "flow": "loan-approval",
  "instanceId": "8b3e4a5c-...",
  "transitionKey": "auto-approve",
  "http.header.x-correlation-id": "abc123...",
  "http.header.x-request-id": "def456...",
  "environment": "development",
  "team": "workflow-team",
  "traceId": "4d5e6f...",
  "spanId": "1a2b3c..."
}

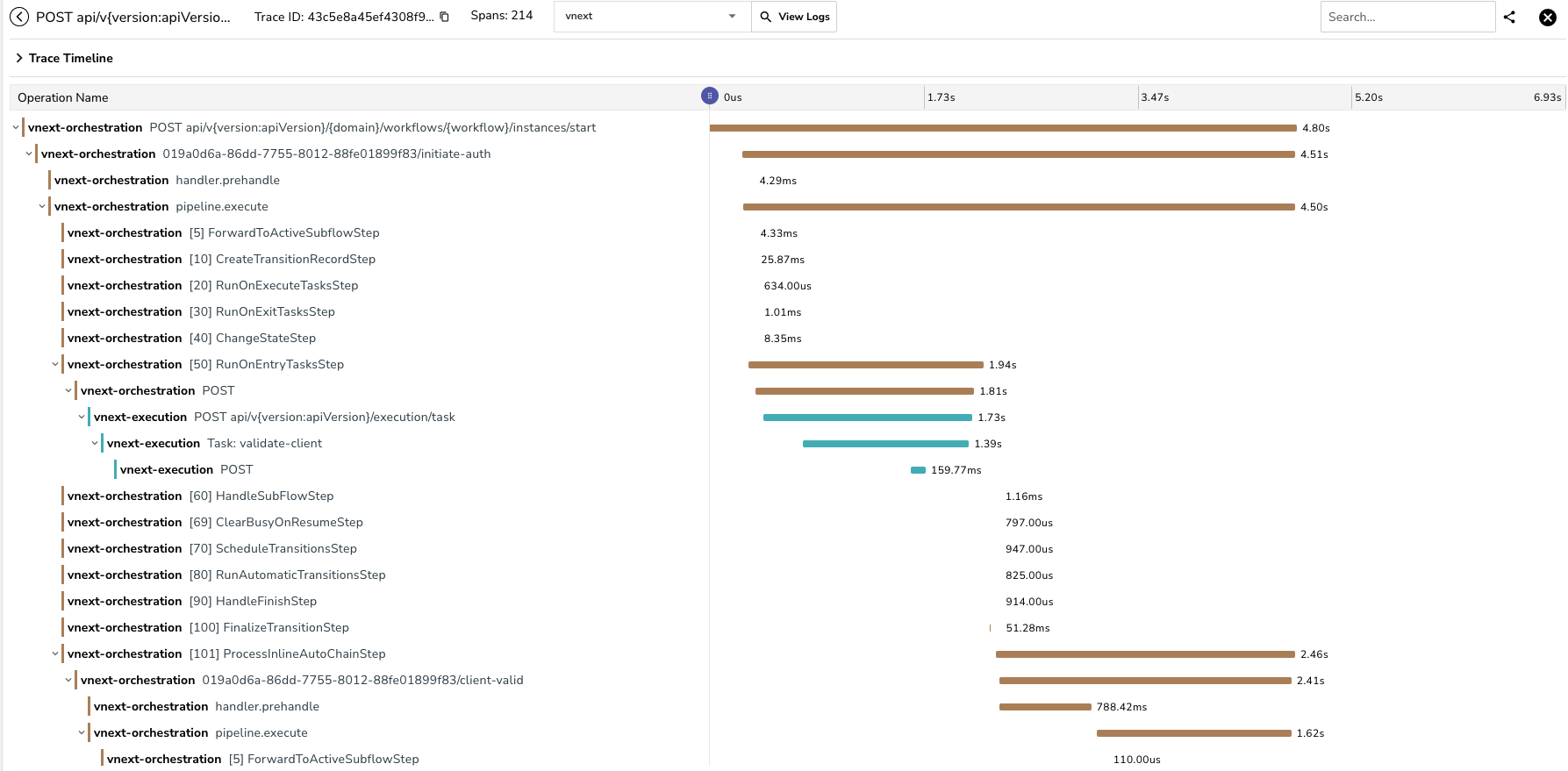

Distributed Tracing

Span Hierarchy Example:

00-a1b2c3d4e5f6... (TraceId)
├── POST /api/v1/execution/instances/{id}/transitions/{key}
│   ├── transition.execute: "abc-123/submit-application"
│   │   ├── handler.prehandle
│   │   ├── pipeline.execute
│   │   │   ├── [1] ValidateTransitionStep
│   │   │   ├── [2] ChangeStateStep
│   │   │   │   └── ✓ Event: state.changed (Draft → Submitted)
│   │   │   ├── [3] RunOnExecuteTasksStep
│   │   │   │   ├── task.execute: "validate-document"
│   │   │   │   ├── task.execute: "send-notification"
│   │   │   │   └── task.execute: "update-external-system"
│   │   │   ├── [4] HandleSubFlowStep
│   │   │   │   ├── subflow.start: "approval-workflow"
│   │   │   │   └── ✓ Event: subflow.initiated (type: S, correlation: xyz-789)
│   │   │   ├── [5] HandleFinishStep
│   │   │   │   ├── ✓ Event: workflow.completed (duration: 1250ms)
│   │   │   │   └── ✓ Event: completion.event.published (topic: flow.completed)
│   │   │   └── [6] SaveInstanceStep
│   │   └── handler.posthandle

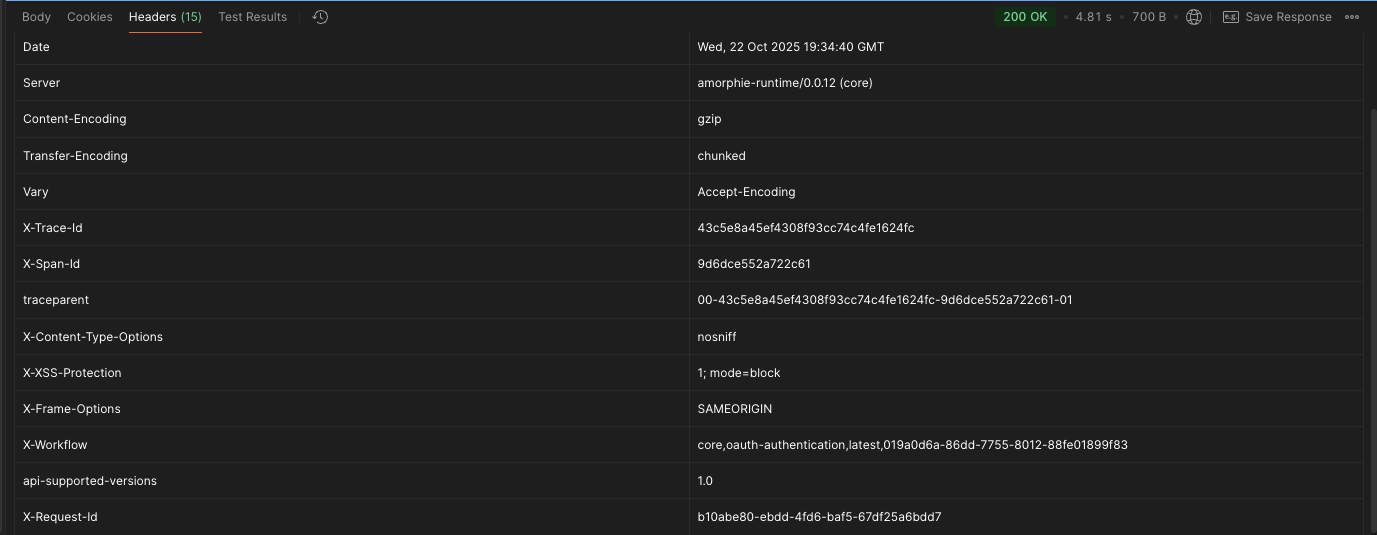

Response Headers

Automatic Header Injection:

• x-trace-id - OpenTelemetry trace identifier
• x-span-id - Current span identifier
• x-correlation-id - Request correlation tracking
• x-request-id - Unique request identifier

EventId Strategy

Structured EventId Numbering:

• 10xxx: Execution layer
• 20xxx: Orchestration layer
• 30xxx: Infrastructure layer
• 40xxx: Application layer
• 50xxx: Domain layer

Severity Ranges:

• xx01-xx39: Information level
• xx40-xx69: Warning level
• xx70-xx99: Error level

Telemetry Prefixes:

• vnext.exec - Execution layer operations
• vnext.app - Application layer operations
• vnext.orch - Orchestration layer operations
• vnext.infra - Infrastructure layer operations
• vnext.domain - Domain layer operations

Configuration Changes

New configuration sections added for:

• Platform override settings
• OpenTelemetry exporters
• Log enrichment rules
• Telemetry sampling rates

📞 Support

For technical support and questions, please contact the vNext Runtime Platform team.

---

vNext Runtime Platform Team
October 23, 2025
